I-Built Design & Layout Service

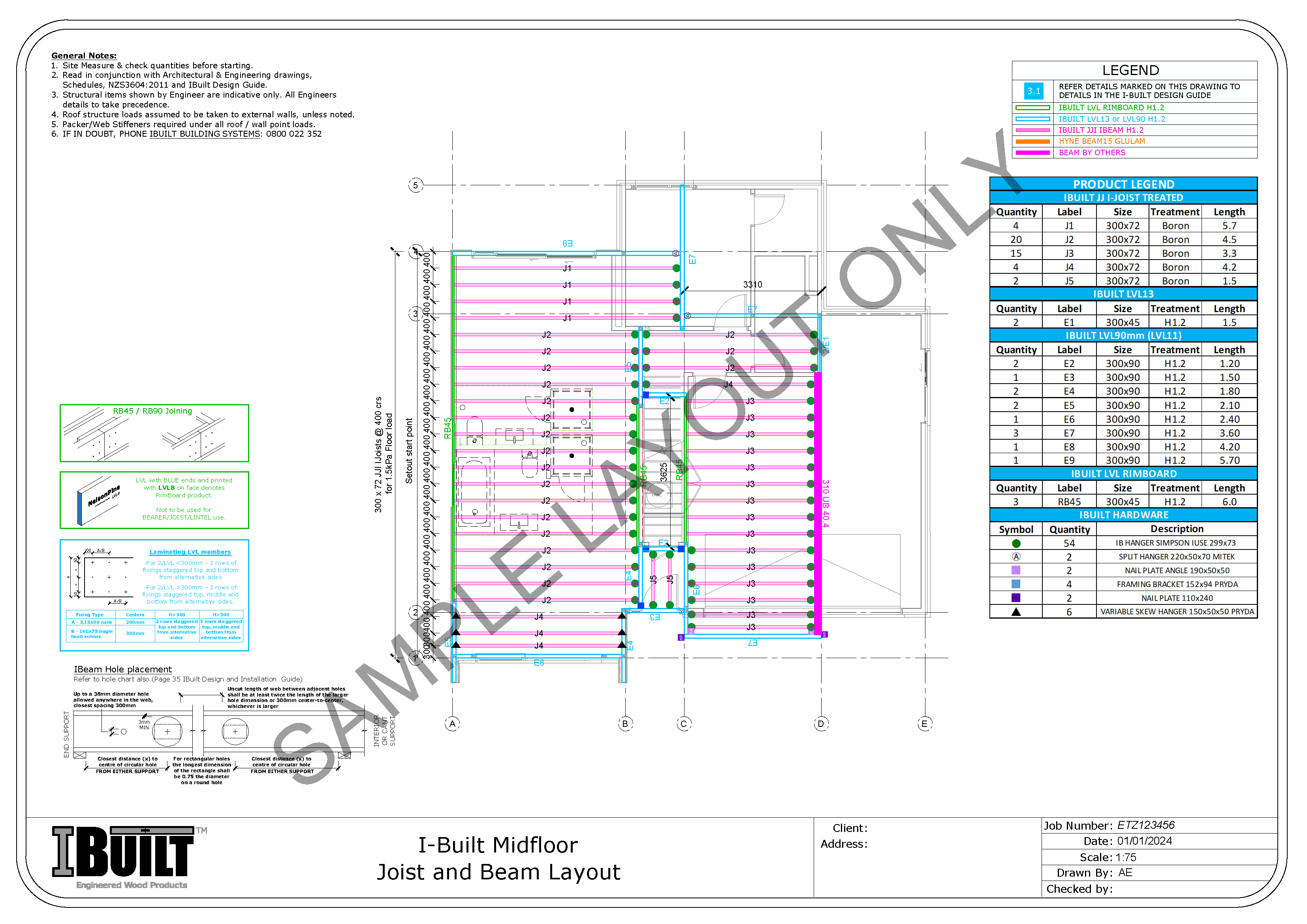

Example of an I-Built Design and Layout package:
When designing your next Mid-floor or Rafter systems, contact our Technical team to organise an
I-Built™ Midfloor Design and Layout take off service. This is a service provided at no extra cost.
Accurate Take Off: Our layout and take-off service ensures all members including flooring, joists, rafters, structural floor beams, perimeter rimboard, hangers and fixings are designed and accounted for.
Fast Turn Around: After receipt of all required plans and information your layout will be completed by one of our experienced designers then sent back for your approval.
Premium Package: When combined with the HD7 Design Software, I-Built™ Layouts provide assurance you are receiving a premium engineered flooring and roofing package all from one supplier.
- All Joists, rafters and beams are designed or cross checked using the HD7.7 (Hyne Design) Software for performance and deflection.
- Every I-Beam, beam and bracket is labelled and cross referenced back to an easy to follow I-Built layout plan supplied with the pack.
- I-Built™ mid floor and rafter systems are supplied to site pre-cut and ready to install.
Downloads
Layout Sample
Lignam Structural HD7 Software Review
Member Certificate Report
Midfloor Service Flyer
IBuilt Midfloor Design and Supply Brochure
